Troubleshooting
Introduction

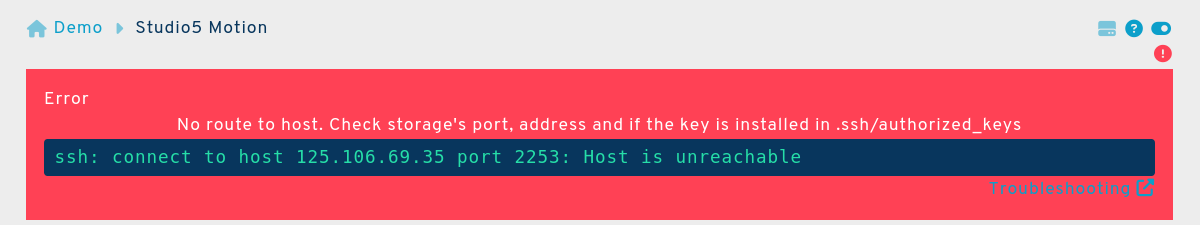

Whenever a storage produces an error, a notification mark will appear next to it. A message is shown on the storage's interface and on the mark tooltip.
Caution
No route to host. Check storage's IP address and port
Under the storage's JSON, the error key contains the error code. The code 255 (ssh connection error) is shown below:
{
"_id": "vol_01FWEWD03P2A13ZWQS3VAWEXAE",
"shortName": "Studio5 Motion",
"bytesRemaining": 928866540,
"bytesTotal": 955756540,
"bytesUsed": 26890000,
"enable": true,
"error": 255
}
Tip
The 0 exit status code means that the process succeeded without error
The error codes, or exit status codes, are a convenient way to identify a problem and troubleshoot it. Below we list the possible codes and the solutions each code.
Error Codes
rsync error codes
From rsync manual page:
0 Success 1 Syntax or usage error 2 Protocol incompatibility 3 Errors selecting input/output files, dirs 4 Requested action not supported: an attempt was made to manipulate 64-bit files on a platform that cannot support them; or an option was specified that is supported by the client and not by the server. 5 Error starting client-server protocol 6 Daemon unable to append to log-file 10 Error in socket I/O 11 Error in file I/O 12 Error in rsync protocol data stream 13 Errors with program diagnostics 14 Error in IPC code 20 Received SIGUSR1 or SIGINT 21 Some error returned by waitpid() 22 Error allocating core memory buffers 23 Partial transfer due to error 24 Partial transfer due to vanished source files 25 The --max-delete limit stopped deletions 30 Timeout in data send/receive 35 Timeout waiting for daemon connection
ssh and other error codes
ssh exits with the exit status of the remote command or with 255 if an error occurred
127 Command not found (rsync installed?)
255 Connection refused or timeout
Diagnostics & Solutions
We now list the errors sorted by their code, along with some explaination and the possible ways to resolve.
12 | Error in rsync protocol data stream {#12}
Note
The remote storage runs an older rsync command and has a protocol version lower than expected.
Tip
Upgrade rsync on the remote storage's host machine.
Important
The error 12 can also occur if rsync is ran using the rsync --rsync-path option and if the specified path is not found.
Note
The error 12 can also occur along with this type of message:
deflate on token returned 0 (470 bytes left)
rsync error: error in rsync protocol data stream (code 12) at token.c(476) [sender=3.2.3]
This error might happen on big compressed files, like .mov of .mp4.
Tip
It is a good idea to check which version of rsync produceed this error, and update it to the latest version if it is not up-to-date. Removing the rsync option --compress for this link should resolve the issue. It happens if the remote host is a Synology with limited hardware. Removing the option also permits high transfer rates (x4).
14 | Error in IPC code {#14}
Note
Probably an error in the rsync command syntax.
Tip
Check the rsync options in your configuration to find a mistake in the syntax.
23 | Partial transfer due to error {#23}
Note
The .SyncPlanetVolumeRoot hidden file was not found in the root directory of the remote storage. The existence of this file is a switch to ensure that the storage is correctly mounted in the directory
Tip
Check if the storage is correctly mounted (after a machine reboot a mount is not automatic or sometimes fails). If it is correctly mounted, please check the permissions on the file, that is has read and write accesses.
Tip
Create this file if it is not created yet (in case of the set up of a new storage)
127 | Command not found {#127}
Note
The rsync command was not found on the remote storage
Tip
Check if the rsync command is installed on the remote storage's machine and that it is accessible in your $PATH. Please install rsync if it is not installed yet.
255 | Connection refused or timeout {#255}
Note
The ssh client could not connect to the remote host. The connection was refused or a connection timeout occured.
Tip
Check if the storage parameters are correct (hostname, port and username)
Tip
Check if the remote host is correctly running ssh and listening to the correct port number
Tip
Check if the options on the remote firewall are correct.
Note
A typical 255 error is raised when the fingerprint of the storage's host changed:
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@ WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED! @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
Someone could be eavesdropping on you right now (man-in-the-middle attack)!
It is also possible that a host key has just been changed.
The fingerprint for the ECDSA key sent by the remote host is
SHA256:flwCLxDvuRuvZ6QxeZxzVl1q+JrCco024LhV3vpJn20.
Please contact your system administrator.
Add correct host key in /root/.ssh/known_hosts to get rid of this message.
Offending ECDSA key in /root/.ssh/known_hosts:1
Password authentication is disabled to avoid man-in-the-middle attacks.
Keyboard-interactive authentication is disabled to avoid man-in-the-middle attacks.
Tip
Remove the offending host key as suggested if the host key change was intented and understood.
Legacy Errors (older systems)
We keep track of the errors that should only happen on older systems.
11 | Error in file I/O {#11}
On Windows + Cygwin
Note
Error code 11 can be confusing when rsync is started as a service on a Windows platform. It can mean that the pid file for rsync already exists in the C:\Program Files\cwRsyncServer folder (or any other directory where rsync is installed) - although no other info will be given in Windows Event Log. It will become more apparent only if rsync is started as a service from the command line. source (broken)
Tip
Remove the existing pid file
Next
If you need some help you can contact us at support@syncplanet.io. In addition, some of our subscription plans include full support days.
